| HOME > PRODUCTS MENU > Adhesive Paste (ALA8806) |
|
|
|
|
|
|
|
 |
|
|
 |
|
 |
|
|
|
|
|
 |
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|

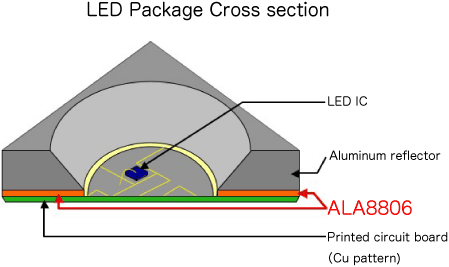

This paste is one-liquid type thermosetting adhesive paste for screen printing application., and it has excellent bondability with copper, aluminum, ceramic or inorganic substrate each other, or glass epoxy or organic substrate.
inorganic material for example copper, aluminum and ceramic with each other, or with organic material such as glass epoxy substrate.
It has sperioriotity compare to adhesive film when apply to limited location, since ALA8806 can be apply by screen printing to desire shape. |
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
 |
Strong adhesive strength to various organic and inorganic material. |
|
|
|
|
Can be transformed into any shape and applied to any part of the material with screen printing. |
|
|
|
|
Designed to improve productivity and lower processing costs. |
|
|
(one liquid type) |
|
|
 |
|
|
|
|
|
|
|
|
Al / Al |
5kgf/cm |
|
|
|
Al / Glass Epoxy |
4.2kgf/cm |
|
|
|
Cu / Cu |
1kgf/cm |
|
|
|
Cu / Glass Epoxy |
1kgf/cm |
|
|
|
 |
|
|
|
|
|
|
|
|
Screen Printing |
(20 ~ 40µm)
|
|
|
|
Drying Condition |
80°C for more than 20 ~ 30mins. |
|
|
|
Thermo compression Bonding |
120~150°C (2 ~ 5Mpa) for 10 ~ 20secs. |
|
|
|
|
|
|
|
Curing condition |
130°C for more than 30mintes Or 150°C for more than 15mintes. |
|
|
|
|
|
|
|
*Condition may differ by adhered, printing thickness, shape, or others. |
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
